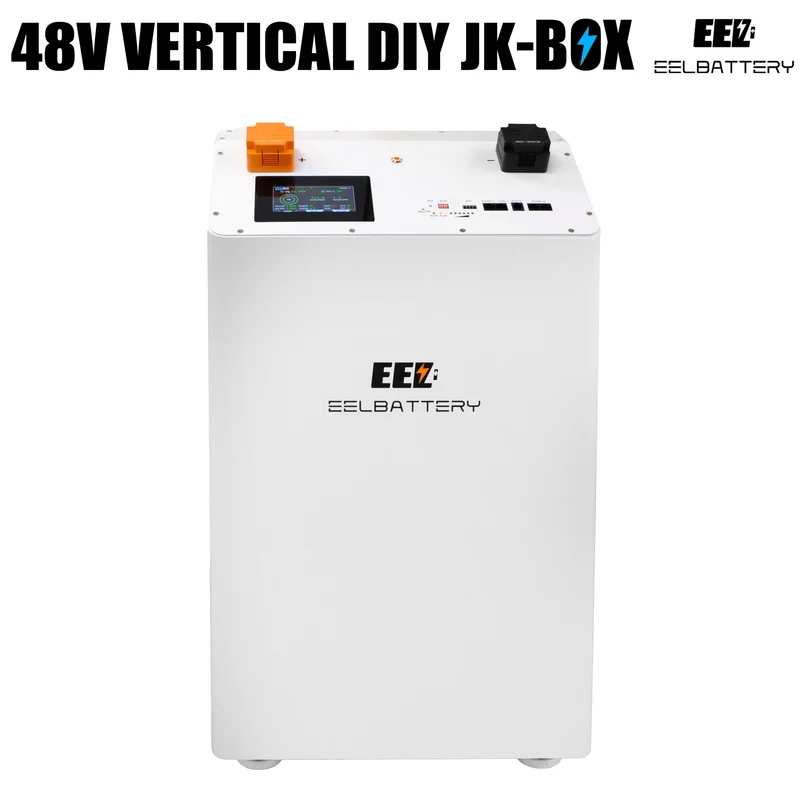

EEL 48V 16S DIY Vertical JK V3 Box DIY Battery Kits with JK V19 Inverter BMS and Wheels

Specification(Battery Vertical JK Box with wheels)

Battery Type:280/302/MB30/MB31/330Ah Cells
Material: Stainless Steel
Communication: CANBUS/RS485
BMS: 48V 16S 150/200A JK V19 BMS
Nominal Voltage:51.2V
Active Balance Current:2A
Warranty:3 Years
OEM/ODM: Available
Weight:29kg
Parallel Type:up to 14 batteries

Parts List(does not come with the battery cells)

1 * Battery Case (front case,1*back Bracket)
1* JK 4.3 inch LCD display with on/off switch
16 * Epoxy/EVA tapes board(Between cell and the case)
2 * PCB Board(with sheet copper wires) for BMS and Cells Connection+2*matched EVA Tape
2 * Handles+4*wheels
1* 250A Class T fuse+1*250A DC cicuit breaker
1 * 48V 16S JK inverter BMS+2*BMS wires+adapter
1 * LCD Screen+1*LCD Screen wire+4 * Button Cap
2 * Special Battery Terminals (P+ Terminal and P- Terminal)
3* Long Flexible busbars (BMS connection)
15 * Flexible busbars (Cell connection)
16* EVA Tape (Between cells)
Other Small Accessories

DownLoad the software:

https://vertikuthub.com/drive/folders/1BdpkjrWTS8rM7Ph8gk29n09wh8JujVtX?usp=sharing

Bluetooth App(Android):

https://vertikuthub.com/file/d/1VkqUj50UKesQP7QZY3ZWnT9a0iyax6rt/view?usp=sharing

Free DDP shipping from China with 40-50 working days delivery.
