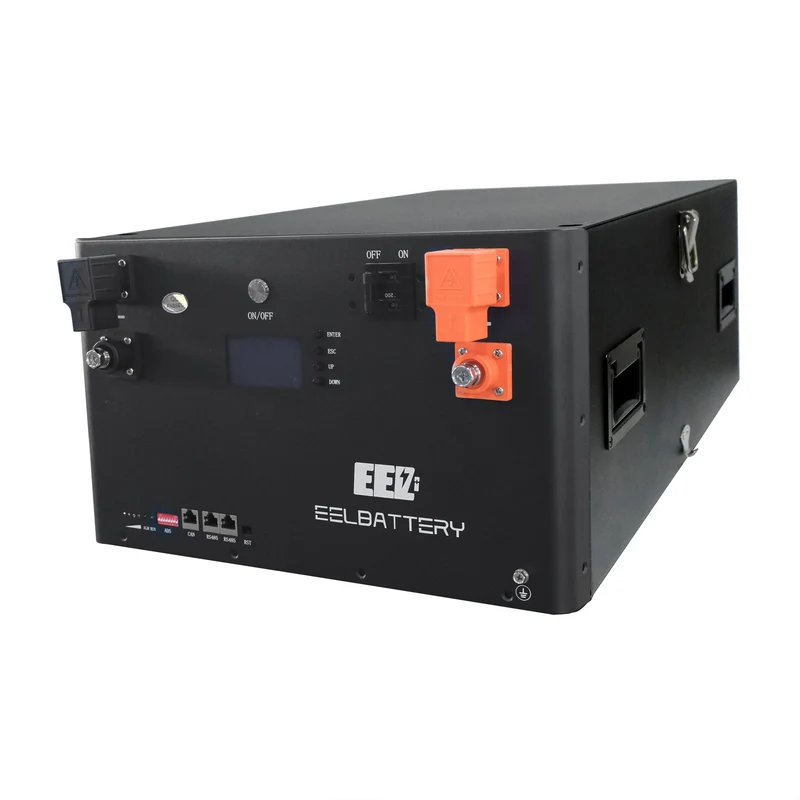

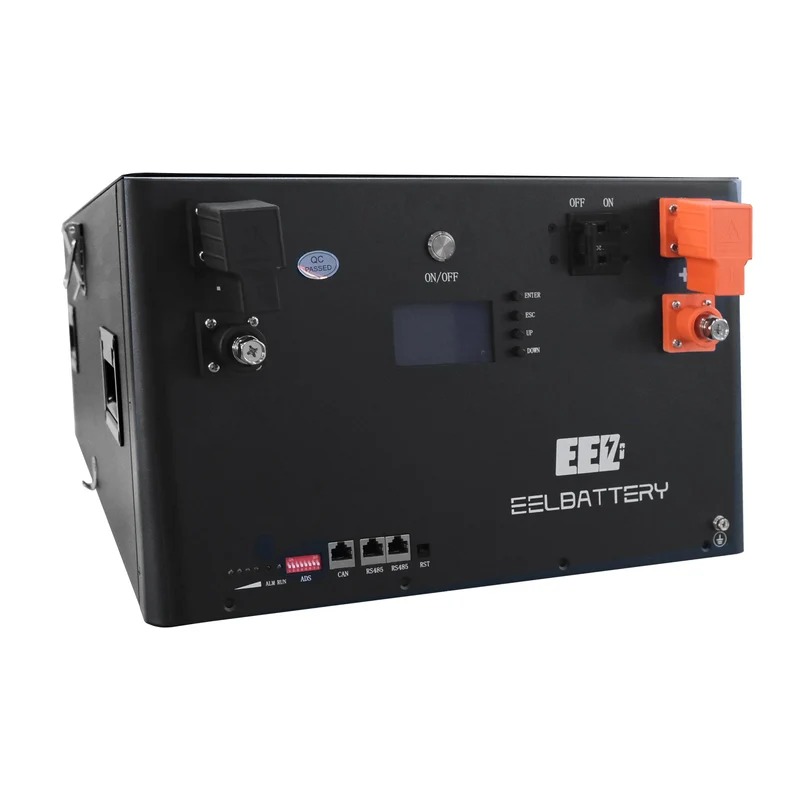

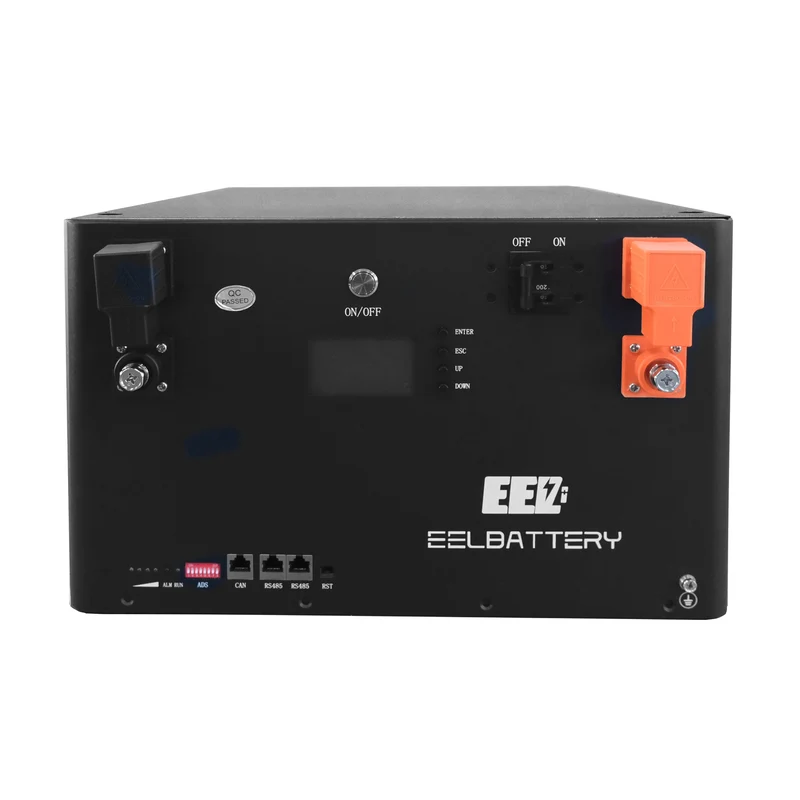

EEL 48V 16S V5 Server Rack Battery DIY Box Kits with Bluetooth Seplos BMS Home Energy Storage Stackable Type

Specification

Battery Type:280/302/306/314/320Ah Cell
Material: Stainless Steel
Communication: CANBUS and RS485(accept both)
BMS: 48V 16S Seplos BMS
Nominal Voltage:51.2V
Current 100/150/200A
Warranty:2 Years
Battery Pack Type: Stackable
OEM/ODM: Available
Weight:29kg

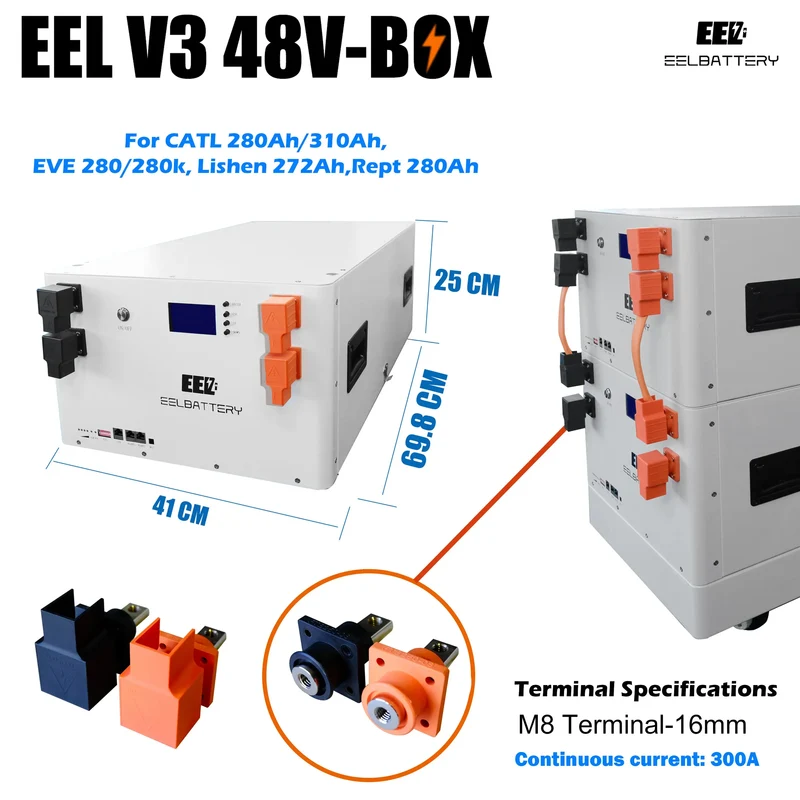

Size:415*700*263mm

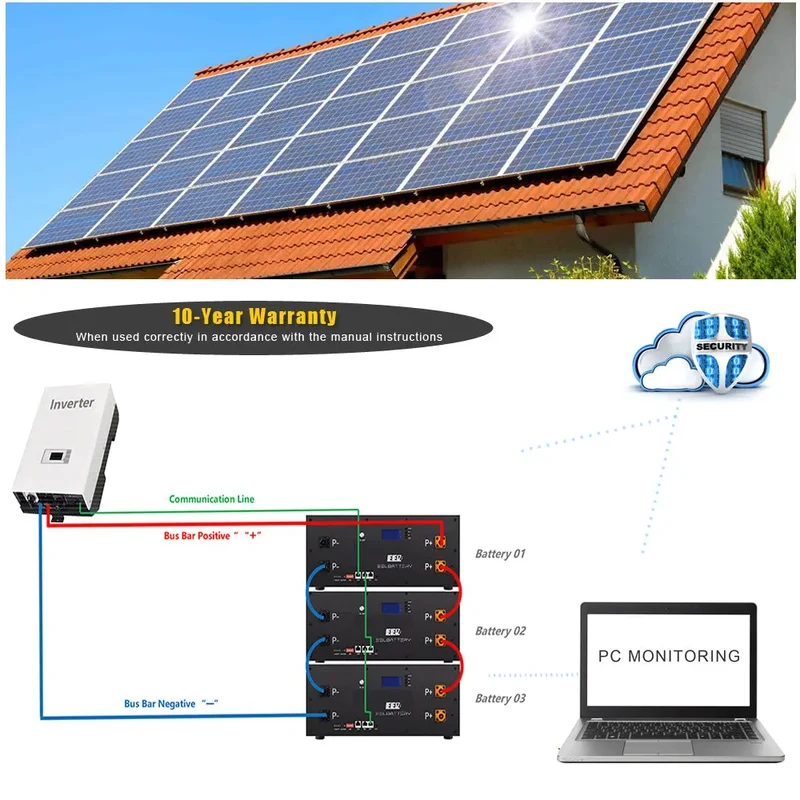

Stackable Type: up to 14 batteries

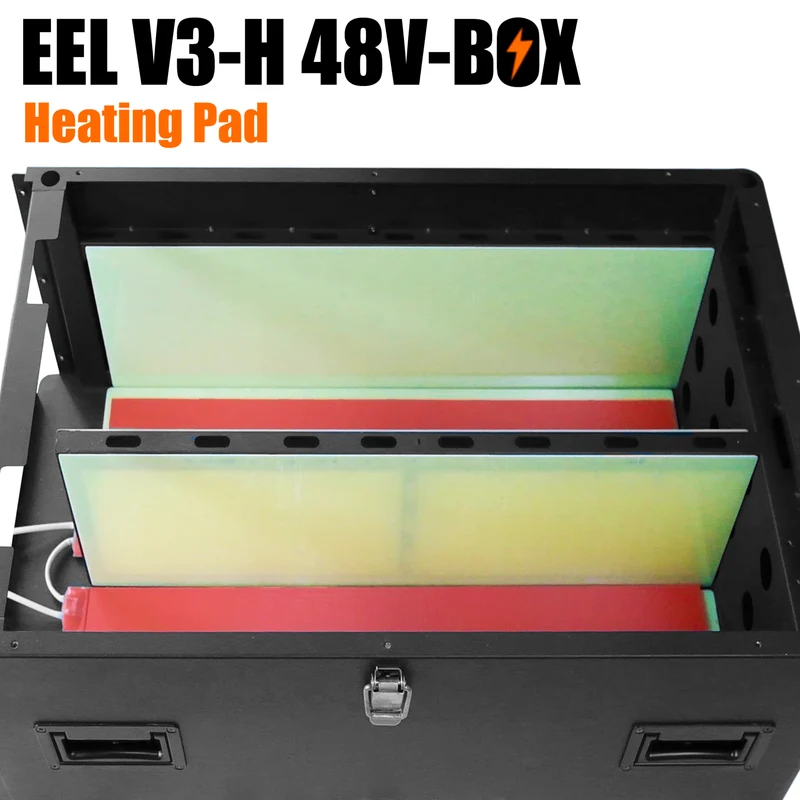

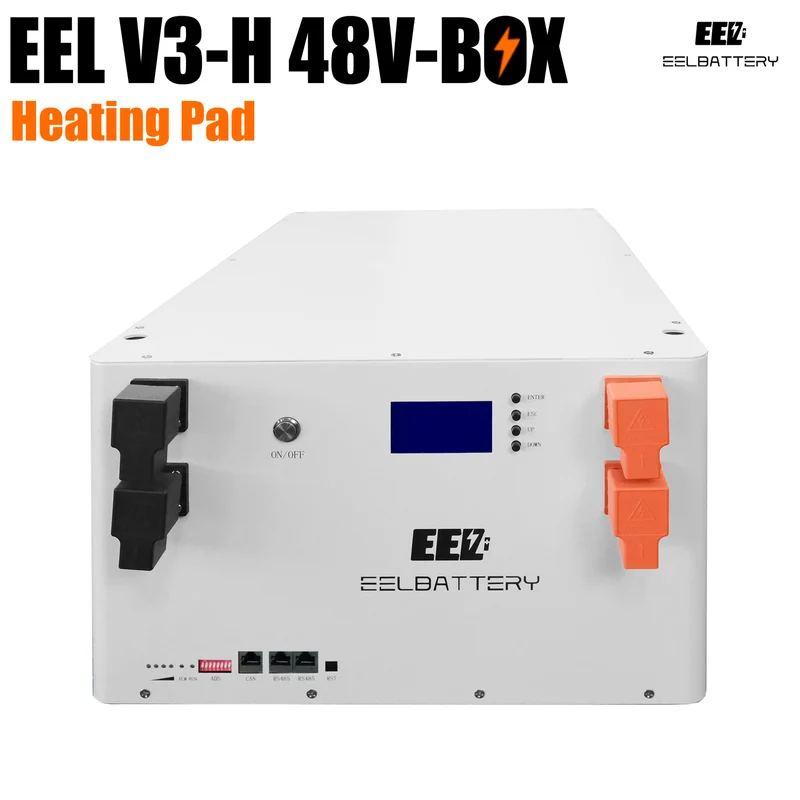

Heating Pad: Optional

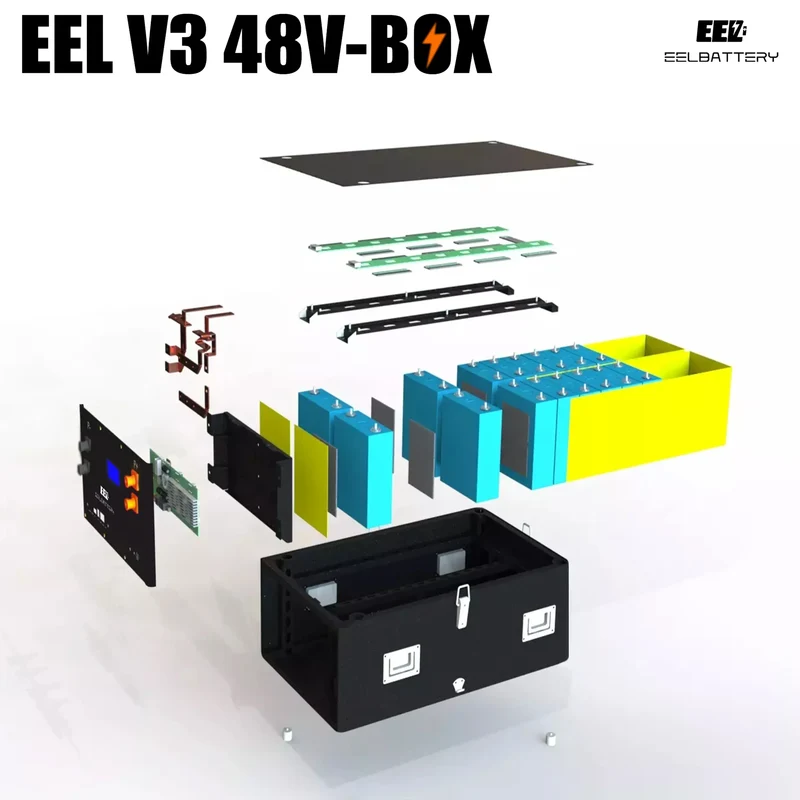

Parts List(does not come with the battery cells)

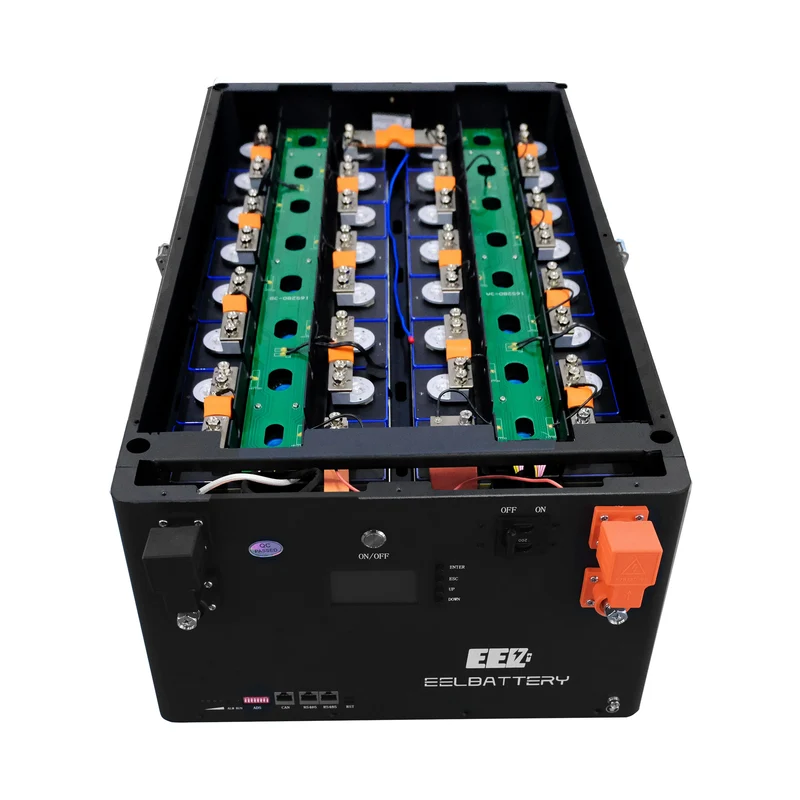

1 * Battery Case (Bottom case, Front Bracket, 2*Top Bracket, Front Panel,Top cover)
1 * 200A CNL fuse with fuse holder
16 * Epoxy board(Between cell and the case)
2 * PCB Board(with sheet copper wires) for BMS and Cells Connection+2*matched EVA Tape
1 * Weak electric switch
1 * 48V 16S BMS+2*BMS wires+4A Active Balancer
1 * LCD Screen+1*LCD Screen wire+4 * Button Cap

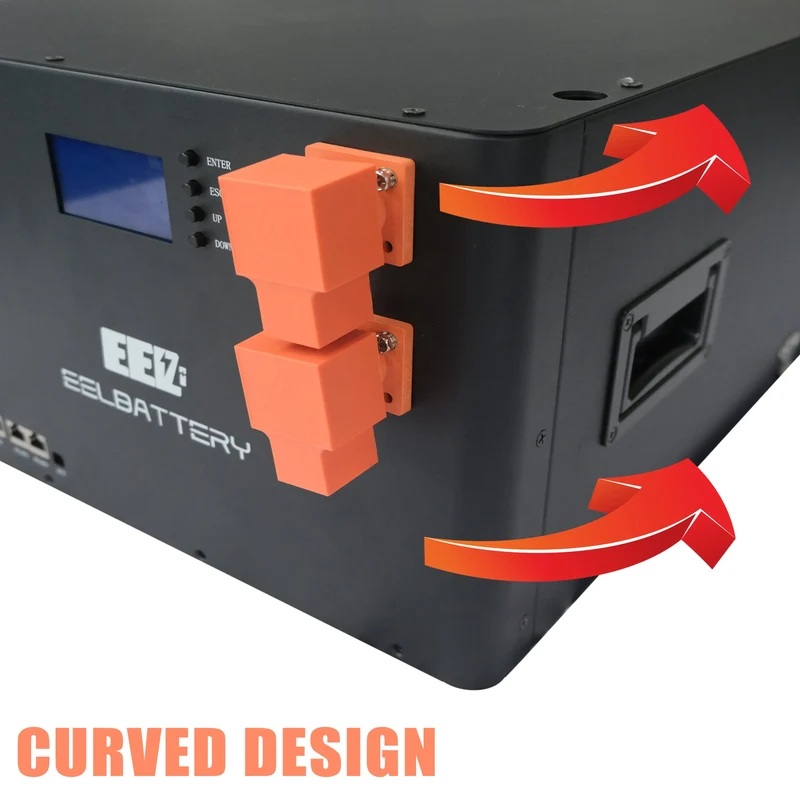

4 * Battery Terminals (P+ Terminal and P- Terminal)
5 * Long Flexible busbars (BMS connection)

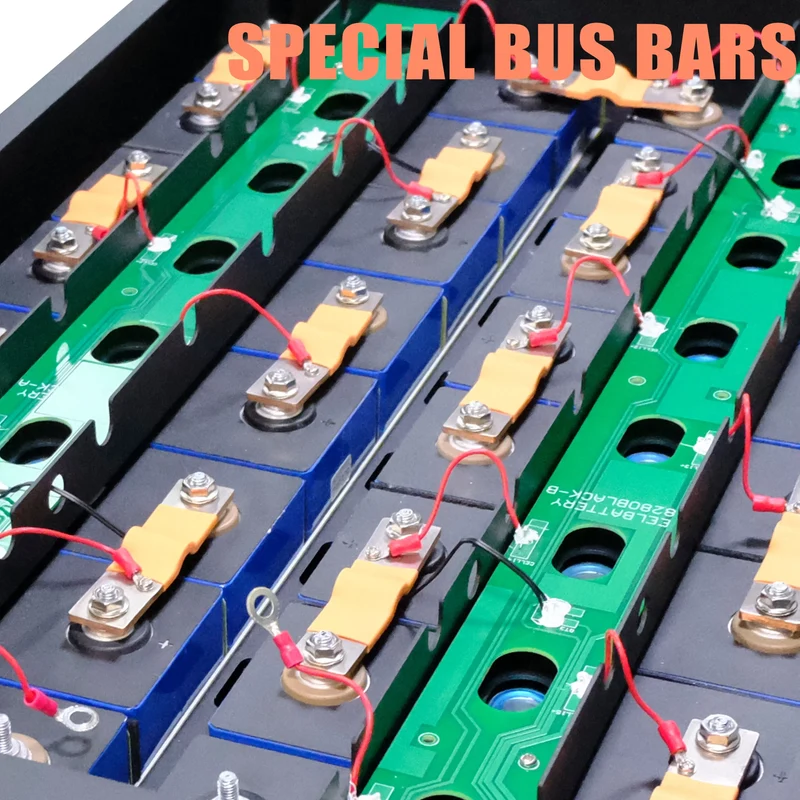

15 * Flexible busbars (Cell connection)
4 * Handle
4 * Upper and Lower Latch lock
10 * EVA Tape (Between cells)
Other Small Accessories

Heating Pad(Optional)

DownLoad the software:

https://vertikuthub.com/drive/folders/1BdpkjrWTS8rM7Ph8gk29n09wh8JujVtX?usp=sharing

Notice:Free shipping from China with 40-50 days for delivery.
