EU Stock-EEL 48V 16S V6-Pro JK Battery Stackable Box DIY Kits with 200A V19 Inverter BMS Energy Storage System Pre-sale Free Shipping & Free Tax & With Cells

Specification(EEL V6-Pro JK Box)

Poland Stock | JK BMS 51.2V 280–314Ah Smart Home Energy Storage System

Fully equipped with integrated BMS, 4-channel 2A active balance and all installation accessories — plug and power made simple.

Empower Your Home with True Energy Independence

Scalable storage, effortless setup:

Stack up to 4 units vertically to save floor space.

Connect up to 16 packs in parallel, expanding capacity from 14.3 kWh to 230 kWh.

Safety Built from the Core Up

Multi-Layer Voltage Protection

Each cell is tracked in real time with ±20 mV precision, delivering over twice the accuracy of conventional systems. This ensures consistent voltage balance and longer cell lifespan.

All-Around Thermal Protection

Integrated with 6 smart temperature sensors — 4 for cells, 1 for ambient air, and 1 for MOS components — all accurate within ±2 °C.

Smart thermal control system:

High-Temp Shield: Automatically pauses charging at 55 °C and gradually limits power at 50 °C to prevent stress on components.

Cold-Weather Mode: Activates internal heating below 0 °C, ensuring reliable discharge even in -20 °C environments.

Engineered Exterior Protection

Encased in a dust- and moisture-resistant IP20 shell, perfect for garages and basements.

Designed with fully enclosed terminals to eliminate accidental contact — certified for CE safety compliance.

Battery cell comparison

Specification(JK V6=Pro Battery Box)

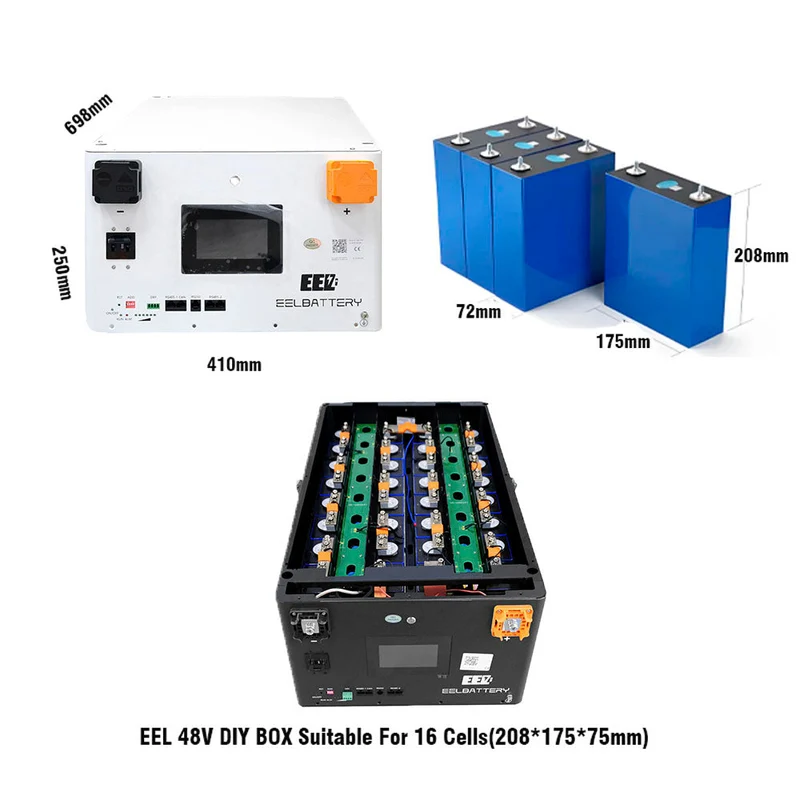

Battery Type:280-330Ah Battery Cells (208*174*72mm)
Material: Stainless&Steel
Communication: CANBUSand RS485(accept both)
BMS: 48V 16S JK-PB2A16S15P/JK-PB2A16S20P
Nominal Voltage:51.2V
Current :200A
Warranty:10 Years
Battery Pack Type: Stackable
OEM/ODM: Available
Weight:29kg
Enclosure Dimensions: 698*410*250mm

UPS/DHL DDP Free shipping to(5-7 working days for delivery):

PL,CZ,SK,AT,DE,HU,BE,BG,DK,EE,FR,NL,LT,LV,LU,MC, RO, HR, FL, ES, SI, SE, IT, GR, IE, PT

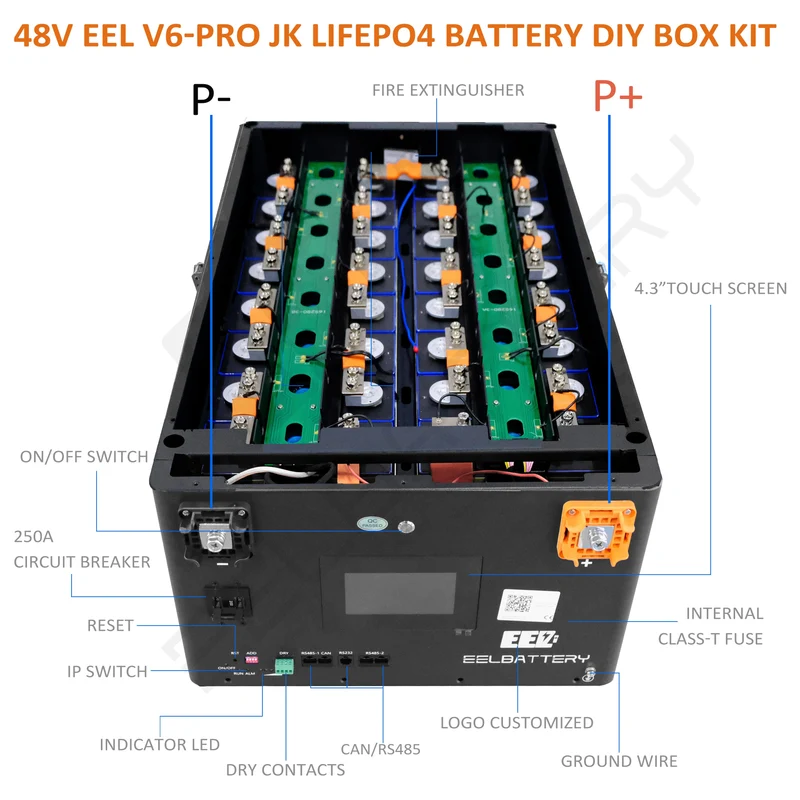

Parts List

1 * V6 Battery Case (Bottom case, Front Bracket, 2*Top Bracket, Front Panel, Top cover)
16 * Epoxy board(Between cell and the case)
2 * PCB Board(with sheet copper wires) for BMS and Cells Connection+2*matched EVA Tape
1* JK 4.3inch V19 display screen
1 * Weak electric switch
1 * 48V 16S V19 JK BMS(JK-PB2A16S20P)+2*BMS wires
1 * Class-T 250A fuse+1*250A Circuit breaker
2*  Upgraded Battery 400A Terminals (P+ Terminal and P- Terminal)
3* Long Flexible busbars (BMS connection)
15 * Flexible busbars (Cells connection)
4 * Handle
4 * Upper and Lower Latch lock
10* EVA Tape+Bar tape (Between cells)
Other Small Accessories

Packaging Details:

Package dimensions: 80.2 x 51.2 x 34 cm (31.57 in x 20.16 in x 13.39 in)
Gross weight per unit: 28 kg (61.73 lb)
